LED X Fly Killer

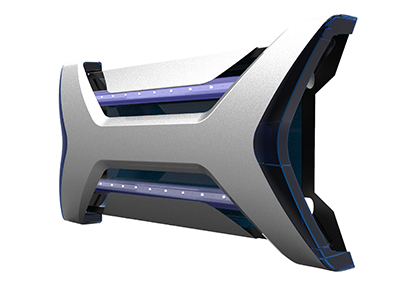

LED X Fly Control Unit

With its discreet design, the LED- X Fly Control Unit is recommended for use in shops and restaurants and dry industrial environments.

Energy saving & effective control

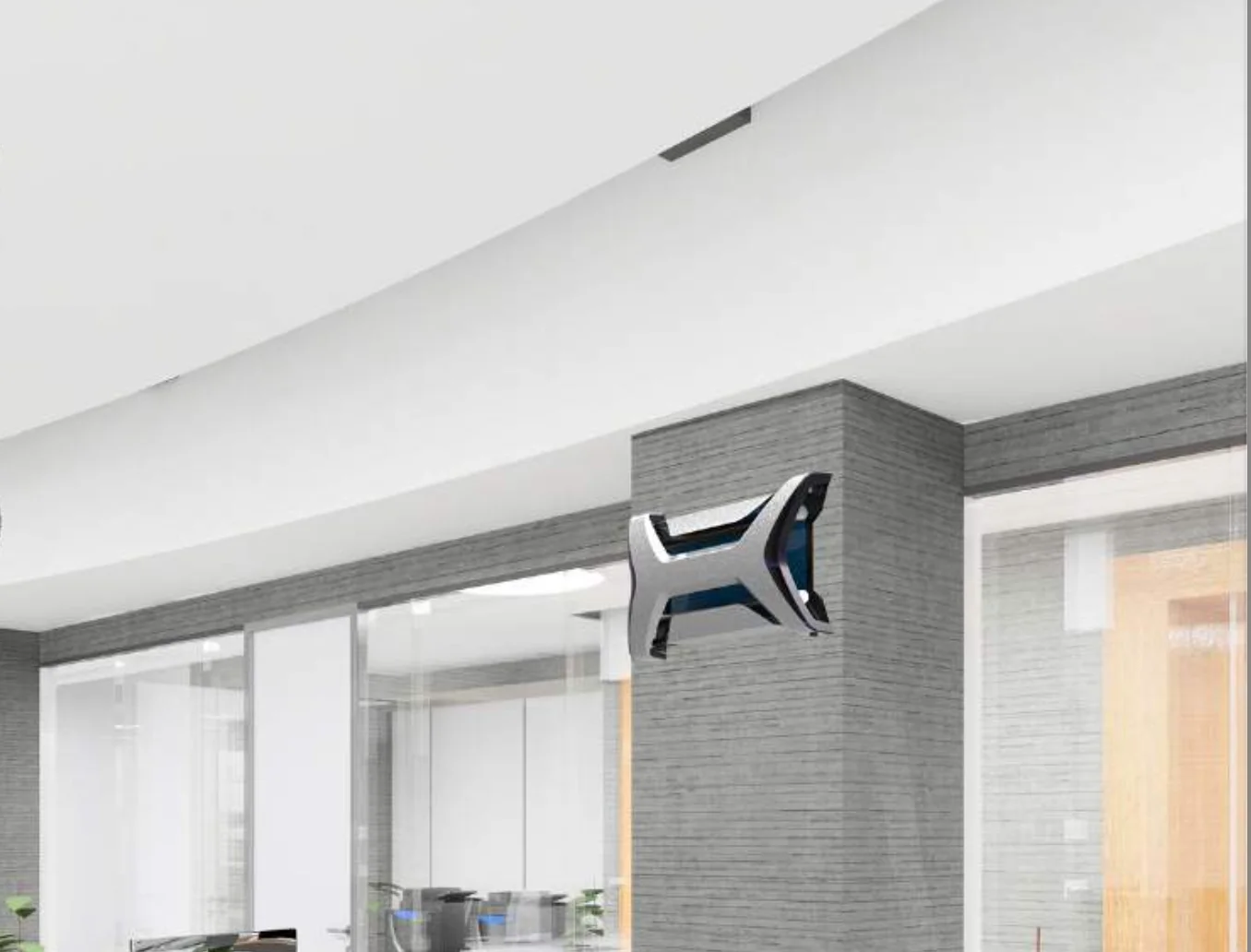

LED-X wall mounting system

With its discreet design, the LED-X is recommended for use in shops and restaurants and dry industrial environments. Easy to service, stylish and effective; the LED-X offers it all.

10 Reasons to start using the LED-X

• Robust metal housing
• Energy saving UV-A LED technology offers over 90 kW of savings per unit per year.
• 3 year lifespan (25.000 hrs) of the UV-A LED lamps • Environmental friendly: no restricted chemicals used in the product design.
• RoHS / REACH / ISO and CB compliant
• Fast and simple maintenance of the unit.
• The glue rail system in the unit can hold diffently sized glue boards. • 2 years of guarantee
• High quality casing offers over 5 years of operational use
• Fast mounting and fast service

Download PDF Brochure

LED lamps

LED technology offers clear advantages in terms of efficiency (lower energy consumption) and its footprint (compactness)

Glue boards

Insects are caught on a glue layer, which preserves them over time. The caught insects can be counted and insect species can be analysed, which offers clear advantages in an IPM approach.

Technical Specifications

Area Covered	50 - 80 m2
Light Source	2x 15 Watt UV-A LED lamps
Type of UV lamps	UV LED Lamps RoHS certified
Electrical supply	100-240 V ~ 50-60 Hz
Catch specifications	By means of long life glue board
Power consumption	23 W
Weight	4,5 Kg
Degree of protection	IP 20 (drip proof)
Guarantee	2 year return to base
Int. building norm	acc. IEC-335-259 int. standard
Lamp life time	25.000 hrs (*)
Dimensions (L x D x H)	538 x 103 x 311 mm
CE-approval	Yes
Mounting position	Wall mounted
Cable	Included
Packaging	Export box included
Manual	Enclosed with the unit in English
Service	Unit can be dismantled without special tools
