LED Uplighter Fly Killer

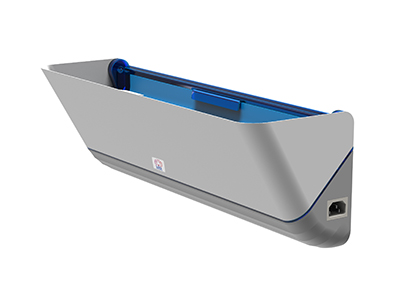

LED Uplighter

With its innovative design, the LED Uplighter is recommended for use in homes, offices, shops and restaurants. The LED-Uplighter is constructed in such a way that the UV-A light is directed upwards.

Energy saving & effective control

LED-Uplighter wall mounting system.

With its discreet design, the LED-Uplighter is recommended for use in shops and restaurants and dry industrial environments.. Easy to service, stylish and effective; the LED-Uplighter offers it all.

10 reasons to start using the LED-Uplighter:

Effective & proven design
Energy saving UV-A LED technology offers over 45 kW of savings per unit per year.
3 year lifespan (25.000 hrs) of the UV-A LED lamp
Environmental friendly: no restricted chemicals used in the product design.
RoHS / REACH / ISO and CB compliant
Fast and simple maintenance of the unit.
Optimized glue board offers fast catch results and a fast analysis
2 years of guarantee
High quality casing offers over 5 years of operational use
Fast mounting and fast service

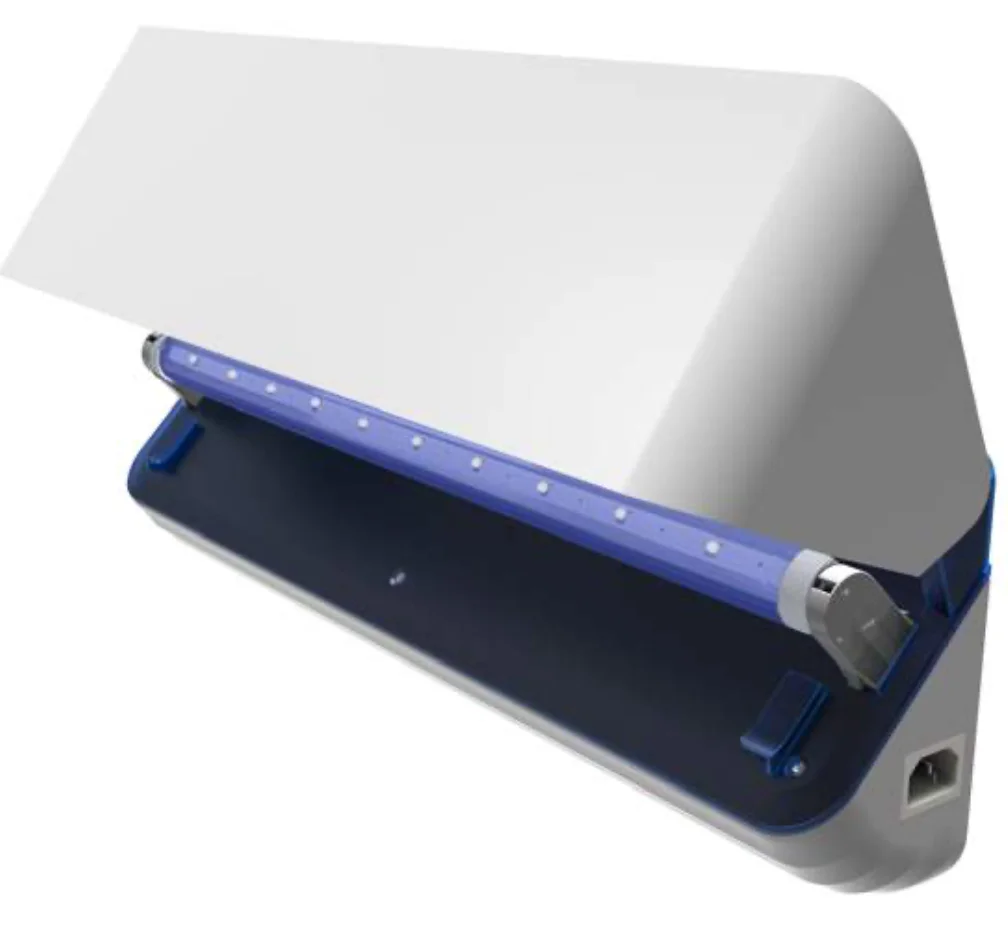

LED lamps

LED technology offers clear advantages in terms of efficiency (lower energy consumption) and its footprint (compactness)

Glue boards

Insects are caught on a glue layer, which preserves them over time. The caught insects can be counted and insect species can be analysed, which offers clear advantages in an IPM approach.

Technical Specifications

Area coverage	30-50 m2
Light source	1x 15 Watt Astron UV-A LED lamp
Type of UV lamps	UV LED Lamps RoHS certified
Electrical supply	100-240 V ~ 50-60 Hz
Catch specifications	By means of long life glue board
Power consumption	11.5 W
Weight	2 Kg
Degree of protection	IP 20 (drip proof)
Guarantee	2 year return to base
Int. building norm	acc. IEC-335-259 int. standard
Lamp life time	25.000 hrs (*)
Dimensions (L x D x H)	494 x 147 x 165 mm
CE-approval	Yes
Mounting position	Wall mounted
Cable	Included
Packaging	Full color box included
Manual	Enclosed with the unit in English
Service	Unit can be dismantled without special tools
