LED Translucent Fly Trap
LED Translucent WALL MOUNTING SYSTEM

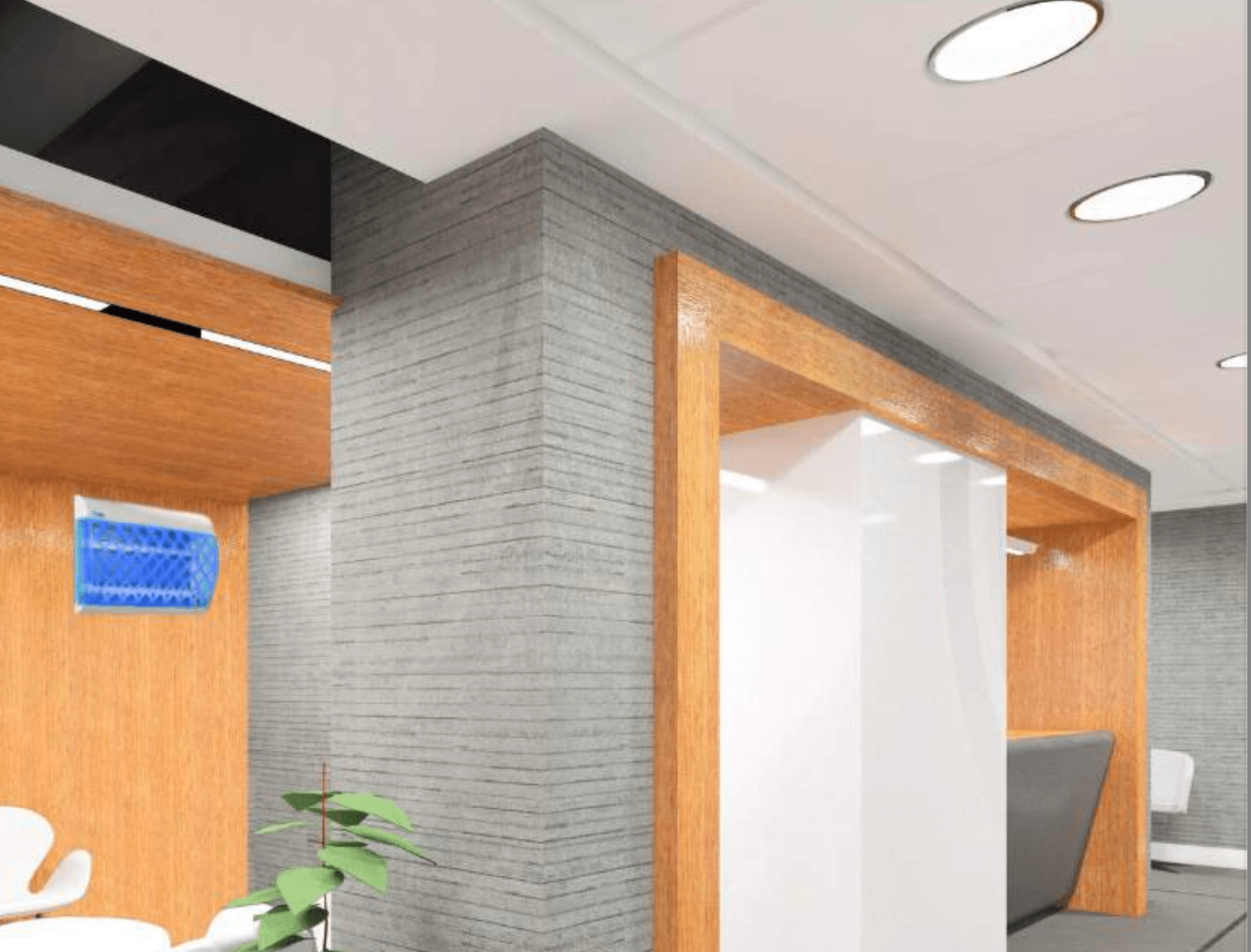

With its discreet design, the LED- Transclucent is recommended for use in shops and restaurants and dry industrial environments. The unit can be wall mounted; the separate mounting strip offers easy maintenance & service.
Energy saving & effective control

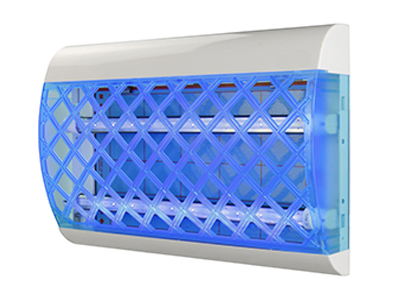

With its discreet design, the LED-Transclucent is recommended for use in shops and restaurants and dry industrial environments.The unit can be wall mounted; the separate mounting strip offers easy maintenance & service. The LED-Transclucent has a transparent front grid, with the housing made of durable ABS plastic and white powder coated steel. Once the insects enter the unit, they are effectively controlled by means of a centrally placed glue board.
10 reasons to start using the LED-Transclucent :
- Effective & proven design
- Energy saving UV-A LED technology offers over 90 kW of savings per unit per year.
- 3 year lifespan (25.000 hrs) of the UV-A LED lamps
- Environmental friendly: no restricted chemicals used in the product design.
- RoHS / REACH / ISO and CB compliant
- Fast and simple maintenance of the unit.
- Optimized glue board offers fast catch results and a fast analysis
- 2 years of guarantee
- High quality casing offers over 5 years of operational use
- Fast mounting and fast service
LED lamps
LED technology offers clear advantages in terms of efficiency (lower energy consumption) and its footprint (compactness)
Glue boards
Insects are caught on a glue layer, which preserves them over time. The caught insects can be counted and insect species can be analysed, which offers clear advantages in an IPM approach.
Technical Specifications
| Area coverage | 50 – 80 m2 |
| Light source | 2x 15 Watt UV-A LED lamps |
| Type of UV lamps | UV LED Lamps RoHS certified |
| Electrical supply | 100-240 V ~ 50-60 Hz |
| Catch specifications | By means of long life glue board |
| Power consumption | 23 W |
| Weight | 4 Kg |
| Degree of protection | IP 20 (drip proof) |
| Guarantee | 2 year return to base |
| Int. building norm | acc. IEC-335-259 int. standard |
| Lamp life time | 25.000 hrs (*) |
| Dimensions (L x D x H) | 470 x 100 x 325 mm |
| CE-approval | Yes |
| Mounting position | Wall mounted |
| Cable | Included |
| Packaging | Full color box included |
| Manual | Enclosed with the unit in English |
| Service | Unit can be dismantled without special tools |
